- 1/1.2″ Format Sensor
- Latest Global Shutter Pixel Architecture
- High Dynamic Range
- Low Noise
- YUV 4:2:2 & 12bit RAW simultaneously (not available yet)
- No CCU – fully self contained
- Size only 32 x 32 x 65 mm
indieDICE is our latest amazingly small global shutter HDSDI camera. It is based on a global shutter sensor of the latest generation with 12 stops dynamic range and low noise.
The camera is fully self-contained and does not need a CCU for operation and control. Everything is integrated in the tiny body.

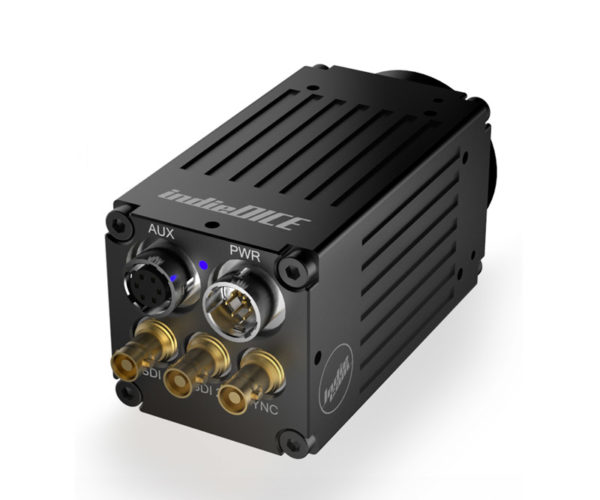

Two HD-BNC connectors output pristine HDSDI signals in YUV 4:2:2 and RAW (not available yet). A third HD-BNC connector accepts Trilevel-Sync Genlock signals for easy synchronisation of multiple cameras.
indieDICE can be controlled via standard RS485 bus. A wireless remote control is available. It is especially well suited for broadcast application due to its Multi-Matrix Color-Control feature. With this shading function, matching multiple cameras in a live broadcast environment is a breeze and conforms to industry standards.
indieDICE is the ideal module for compact and elaborate Virtual-Reality camera systems. It is available in angled and OEM versions and can be mechanically positioned very close together in every conceivable arrangement. Full synchronisation, global shutter, 60fps and wireless remote control enable streamlined production workflows and facilitate stitching and VR-post-production.
TechSpecs
| Sensor | Size | 1/1.2“ |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Readout | Progressive & Interlaced | |
| Shutter | Global | |
| Pixel Size | 5.86 µm | |
| A/D Converter | 12bit | |
| Sensitivity | 400 ASA | |
| Genlock | Trilevel Sync | Master/Slave switchable |

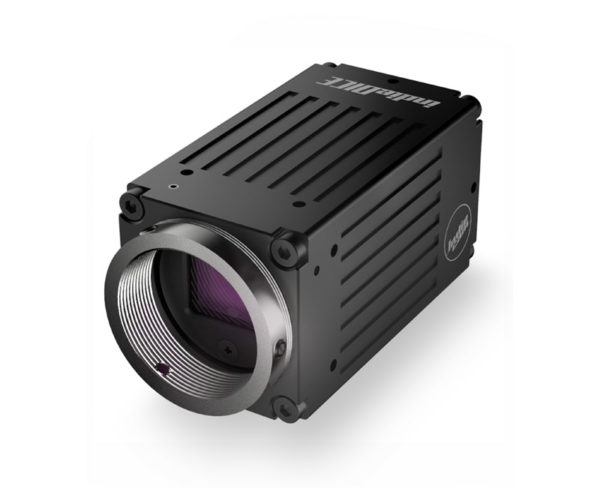

| Mount | C-mount | standard |
| PL-mount | optional | |
| Modes | YUV 4:2:2 10 bit | 1080p24 / 1080p25 / 1080p30 / 1080p50 / 1080p60 1080p23.98 / 1080p29.97 / 1080p59.94 1080i50 / 1080i59.94 / 1080i60 |
| RAW, 12 bit (not available yet) | 1080p24 / 1080p25 / 1080p30 / 1080p50 / 1080p60 1080p23.98 / 1080p29.97 / 1080p59.94 |
|
| Interfaces | 3G HD-SDI | 2x HD-BNC |
| Genlock-In | HD-BNC | |
| Power + RS-485 | Hirose | |
| AUX connector (I2C, UART) | Hirose | |
| Status LED | RGB | |
| System-Features | Gamma | Standard & Custom LUTs |
| White Balance | Auto/Manual | |
| Colour Space YUV | REC 709 | |
| Colour Space RAW | RGB 4:4:4 | |
| Profiles | User Profiles can be stored | |
| Auto start with last settings | ||
| Restore Factory Defaults | ||
| Auto-Control | Auto-Shutter | |
| Auto-Gain | ||
| Auto Iris / Lens control | via AUX connector (I2C, UART, Power) | |
| Timecode-Out | embedded in SDI | |
| Power | Voltage | 6 – 36 V DC |
| Consumption | 3.5 W | |
| Dimensions | Size w/o lens | 32 x 32 x 65 mm |
| Weight w/o lens | approx. 120 g | |
| Environmental | Operation | 0 – 55 °C, 10 – 90 % RH |
| Storage | -20 – +70°C, 10 – 90 % RH |
Use Cases
- Professional Broadcast
- Virtual Reality
- Feature Films (action-shots)
- Commercials

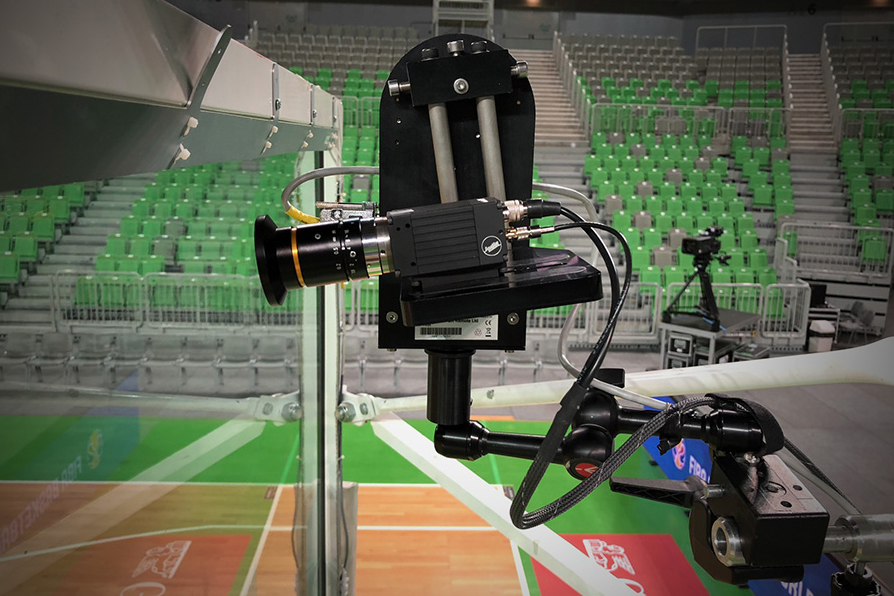

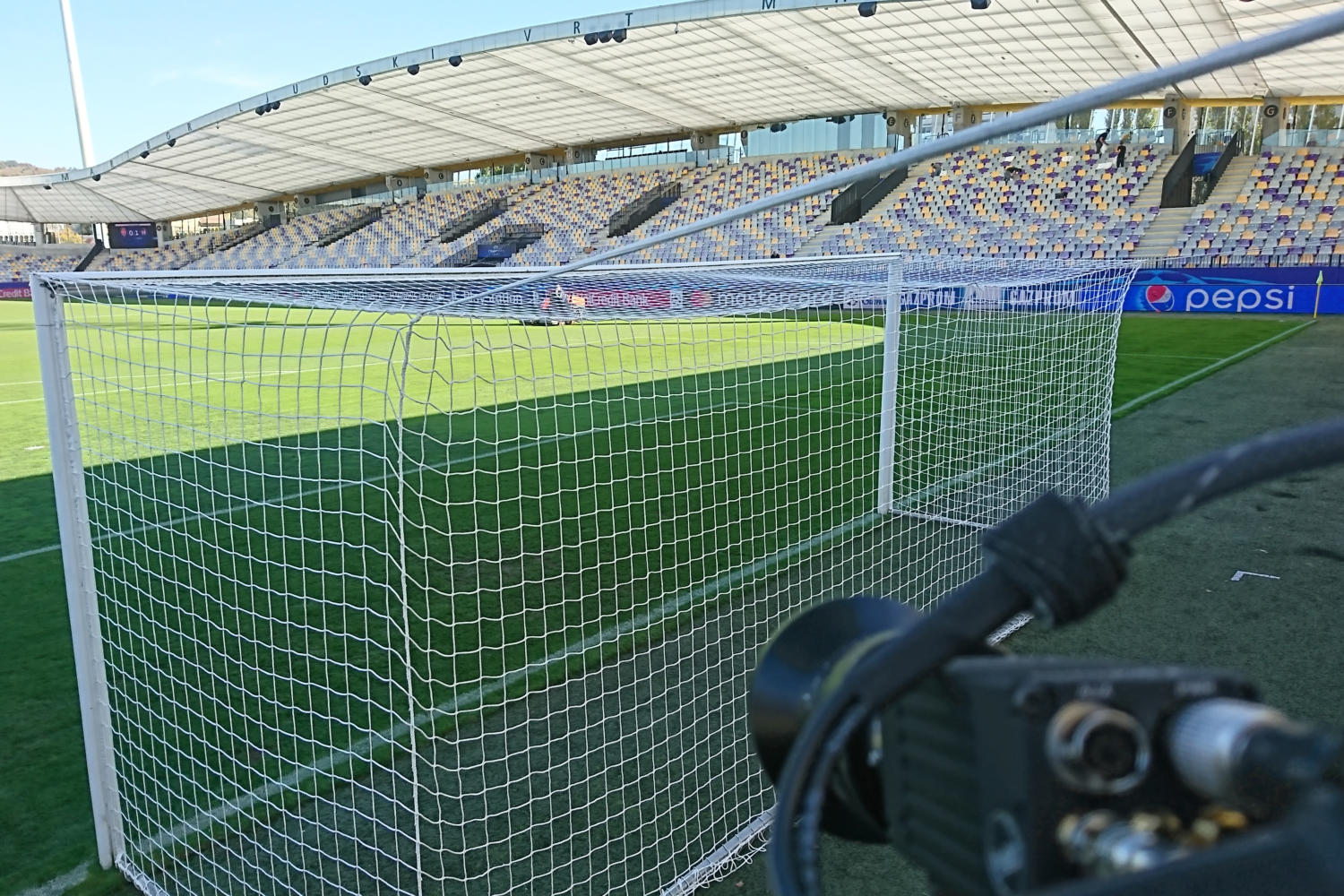

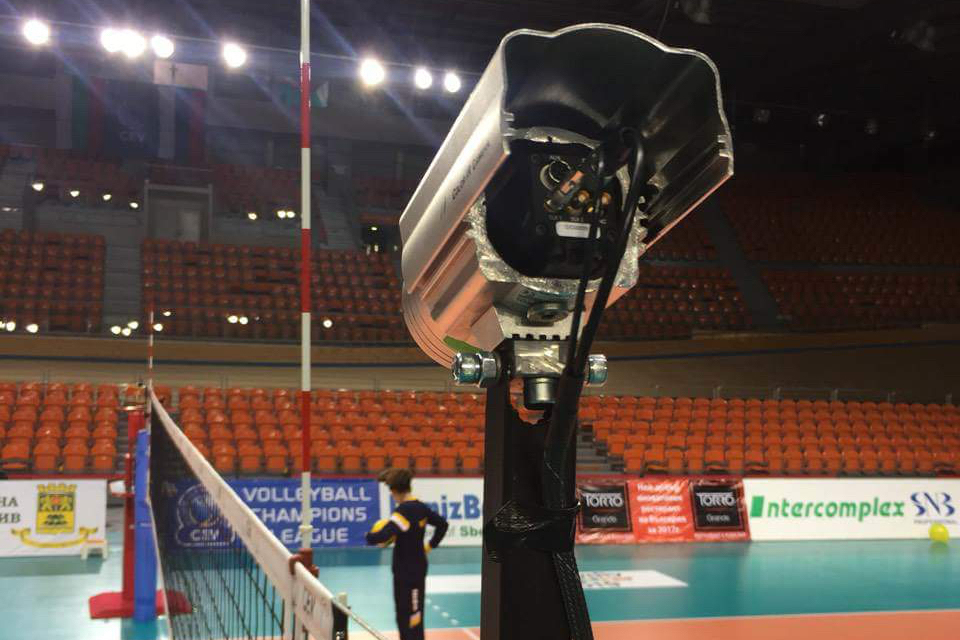

- Live Sports events
- Live Concerts
- Reality Shows
- OB Vans/Trucks
- LTE and Web-Streaming with TARGA – LTE field streaming unit
- Best camera for “in car” motorsports
- Miniature PTZ-camera systems
Image Processing Features
- REC709 / LOG switchable
- Automatic Defect Pixel Correction (auto-calibrate)
- 4 Channel Sensor LUT (RGBG) programmable
- Black Level, White Level, Master Black
- White Balance / Auto White Balance
- Flare compensation
- High Quality Debayer
- Colour Matrix / Colour Correction
- Colour Temp Settings / Profiles
- Multi-Matrix Colour Correction (12/24/32 angles)
- RGB LUT programmable
- Denoise Filter
- Detail Enhancer
- Colour Post Processing (luminance, contrast, saturation, hue)
- SDI-Range adjustable (black / white – legal / extended)
Dimensions
